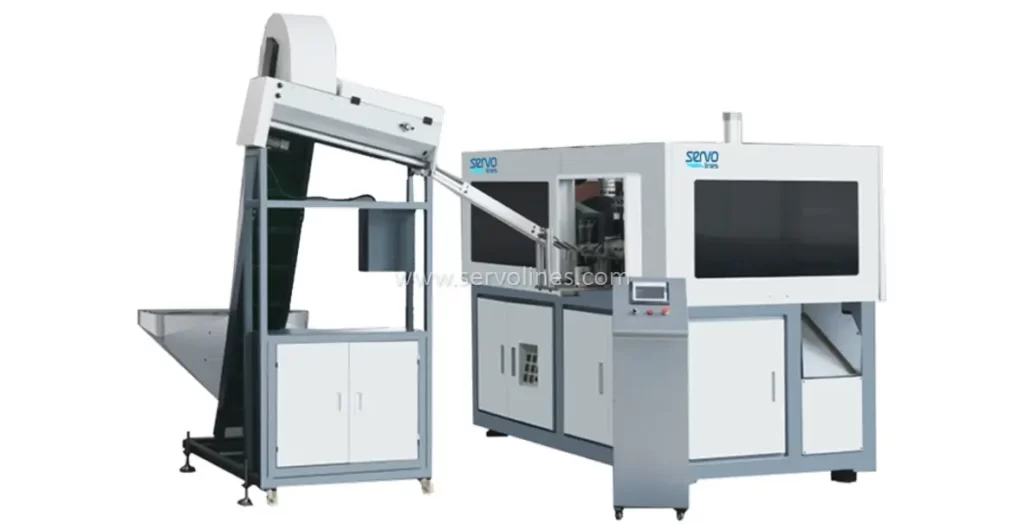

Automatic Servo 4 Cavities Bottle Blowing Machine
SVB-2C2S
Stable Capacity: 2500~3000BPH
With Two Servo Motors
1. Technical Process:
High-pressure air compressor → High-pressure air tank → High-pressure filter → High-pressure air dryer → Low-pressure air compressor → Low-pressure air filters → Low-pressure air dryer → Mold chiller → Automatic blowing machine.
2. Feature:
- A horizontal rotation transfer system makes construction and maintenance easier and reduces the cost of spare part change.
- Compact preform heating distance design for efficient heating and reduce energy consumption.
- Using a hard claw to catch the preform and bottle, resistance to wear with long life.
- Mold closing adopts CAM linkage, no chainplate pin shaft making its small volume and long lift.
- stainless steel pipes make the air clean without pollution.
- Servo motor drive system with synchronized base blow mold for fast response operation, precision blowing valve for high output.
- Slip for bottle mold make the installation easier.
- Touch-panel control system for simple operation with 9 inch LCD screen.
3. Configuration Details
Name | Brand | Origin |
PLC |  | Germany |
Computer Controller | | Germany |
Frequency Converters | | Germany |
Servo motors |  | Taiwan |
Magnetic Valve |  | Germany |
Speed Reducer | | Germany |
One-way valve | | Germany |
Breaker |  | France |
A.C. Contactor | | France |
Muffler |  | Japan |
Cylinder | | Germany |
Magnetic Switch |  | Taiwan |
Photoelectric Switch |  | Germany |
Rotating cylinder | | Germany |
Intermediate relay |  | Japan |
High pressure exhaust valve |  | USA |
High pressure muffler |  | USA |
4. Machine Specifications
Model: | SVB-2C2S |
PRODUCT | |
Output: | 2500-3000 bph |
Max. Volume: | 2000ml |
Max. height: | 320 mm |
Max. diameter: | 105 mm |
MOULD | |
Number of cavities: | 2 cavities |
Mould thickness: | 188 mm |
Mould opening stroke: | 110 mm |
ELECTRICAL | |
Power: | 220-380V 50-60Hz |
Total power: | 45kw |
Heating power: | 40kw |
AIR SYSTEM | |
Operation Pressure: | 0.8-1.0 Mpa |
Action Air Consumption: | ≥1.6 mM3/min |
Blowing pressure: | 2.6-4.0 Mpa |
Blowing Air Consumption: | ≥2.4 m3/min |
MACHINE | |
Main body dimension (LxWxH): | 3.8×2.0×2.3 m |
Main body weight: | 4000 kg |
Preform autoloader: | 2.2×1.4×2.6 m |
Preform automatic weight: | 300 kg |
