YCD-6535

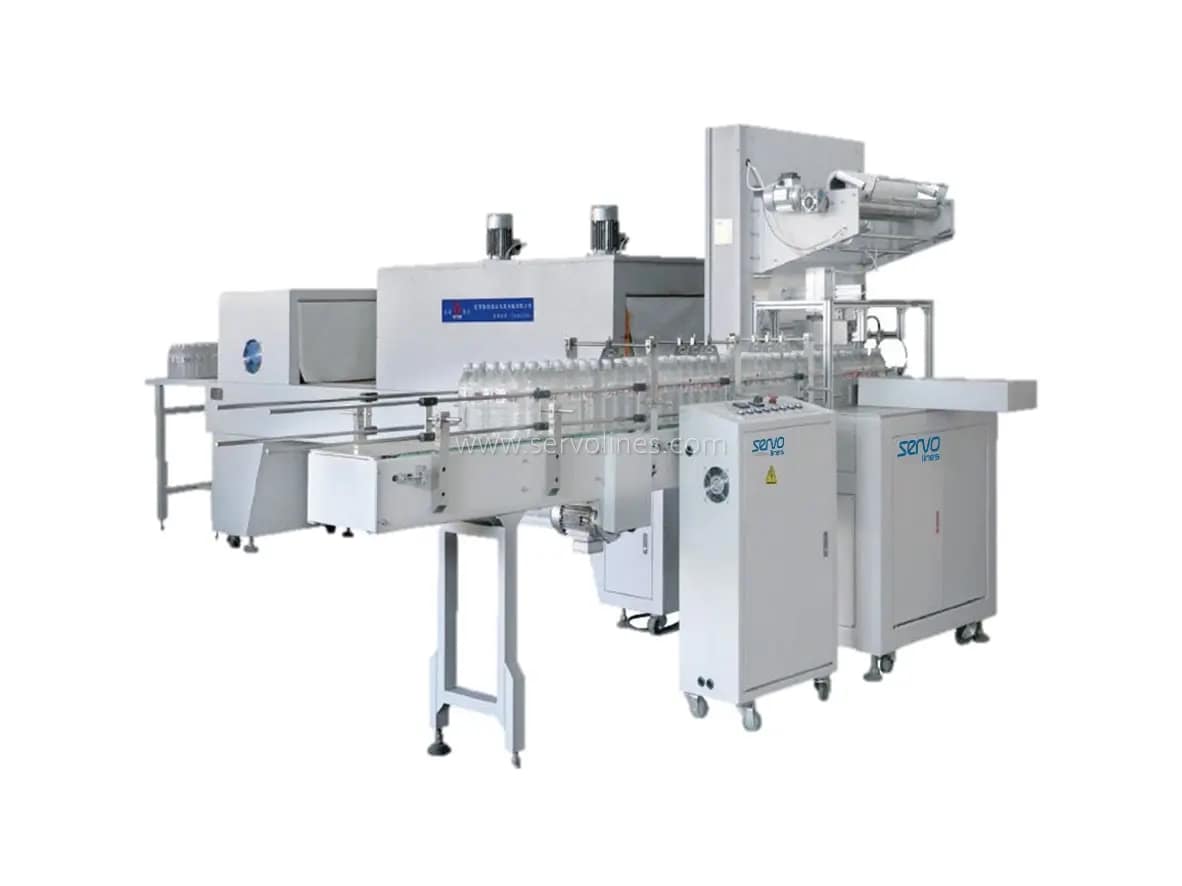

L-Type Film Wrapping Machine
Application
The YCD-6535 shrink film packaging machine features a packaging speed of 10-12 pcs/minute, and is designed for beverage automatic packaging production lines for products such as beer, beverage, purified water, juice, dairy products, and so on.
Features
- Full automation function of conveying, feeding, bottle arranging, wrapping, sealing, shrinking, cooling, and setting.
- The machine adopts the world’s most advanced film constant temperature heat sealing technology with clear and firm sealing.
- PLC program automatic cycle control makes machine performance stable and reliable.
- Original high-quality guide rod cylinder with accurate movement and durability.
- Unique shrinkage tunnel, two centrifugal hot air circulation systems deliver even heat balance for a tight beautiful shrink wrap.
Main Technical Parameters
Model: | YCD-6535 |
Applicable Packing Material: | PET bottles, glass bottles |
Packing speed: | 10-12 pkgs/min |
Power/ voltage electricity: | 3-phase-5-line /380v/50 Hz |
Power charge: | 25 KW |
Machine dimension: | L×W×H：6500×3200×2100mm |
Air pressure: | 0.6-0.8 Mpa (under the condition of no oil no water) |
Air consumption: | 300NL/min |
Pipe joint size: | Φ10mm |
Whole machine weight： | 1500kg |
Relevant Material Requirements
Packaging Materials: | LDPE (dust removal, static electricity removal) |
Film roll width: | ≤ 580mm |
Film thickness: | 0.04 ~ 0.10mm |
Film roll diameter: | ≤ 400mm |
Tensile strength: | Vertical and horizontal lined with GB13022 standards |
Heat shrinkage rate: | A vertical, horizontal line with GB / T13519-92 standards |
Contraction ratio: | A vertical and horizontal line with GB / T13519-92 standards |
Breaking strength: | Vertical and horizontal line with GB13022 standards |
Thickness deviation: | in line with GB6672 standard |
The Main Performance Characteristics
- Classic shape, beautiful, novel structure, unique, easy operation and maintenance.
- Electronic sensing PE film delivery, sending film stable, fast and convenient for membrane.
- The third generation SHF thermostatic seal cutter, Edge firmly, cut off quickly. Sealing strength of cold cut hot knife more than 3 times, uniform sealing formation, the service life is 80 times the hot sealing knife.
- Three sets of frequency control conveyors, precise transmission synchronization, and reliable transmission.
- Shrinkage chamber using circular wind technology, reasonable structure, thermal insulation, high-temperature control, shrink packaging better. Import Teflon conveyor belt, and metal mesh belt to save 20% of electricity.
- Addition of product safety protection mode: Anti-cut bottle function: When the sealing cutter encountered obstacles, it will automatically stop the downward movement, and rebound rise, to prevent knife products and sealing knife damage.
- Equipped with humanized operating mode: In the host frame close to the cutter position, the new manual button facilitates the operation and maintenance, improving efficiency.
Main Configuration Parts:
Name | Brand | Origin |
PLC Controller (core part) |  | France |
LMC101C Controller |  | German |
Transducer |  | Denmark |
Lower cutter cylinder |  | Taiwan |
Bottle-pushing cylinder | | Taiwan |
Intermediate relay | | France |
Approaches switch |  | France |
Contactor | | France |
Meshy belt |  | USA |
