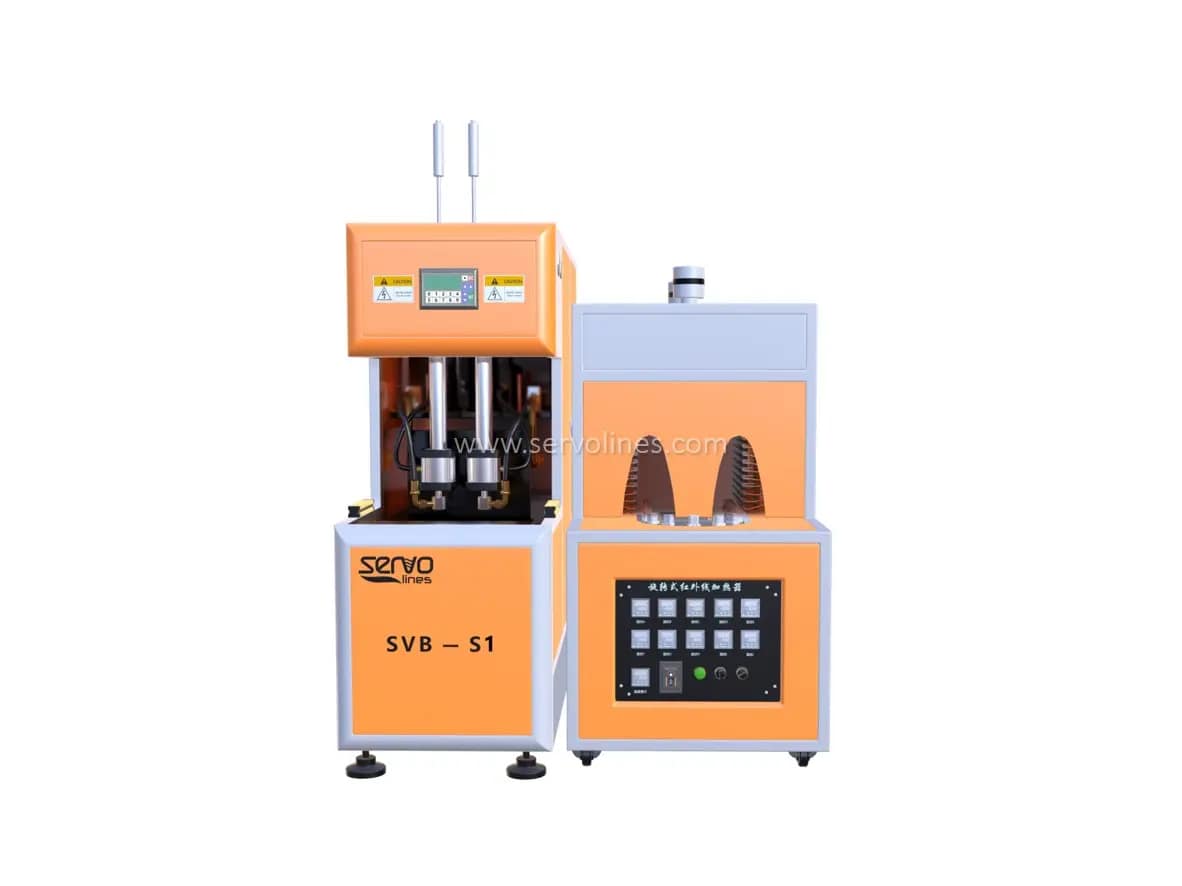

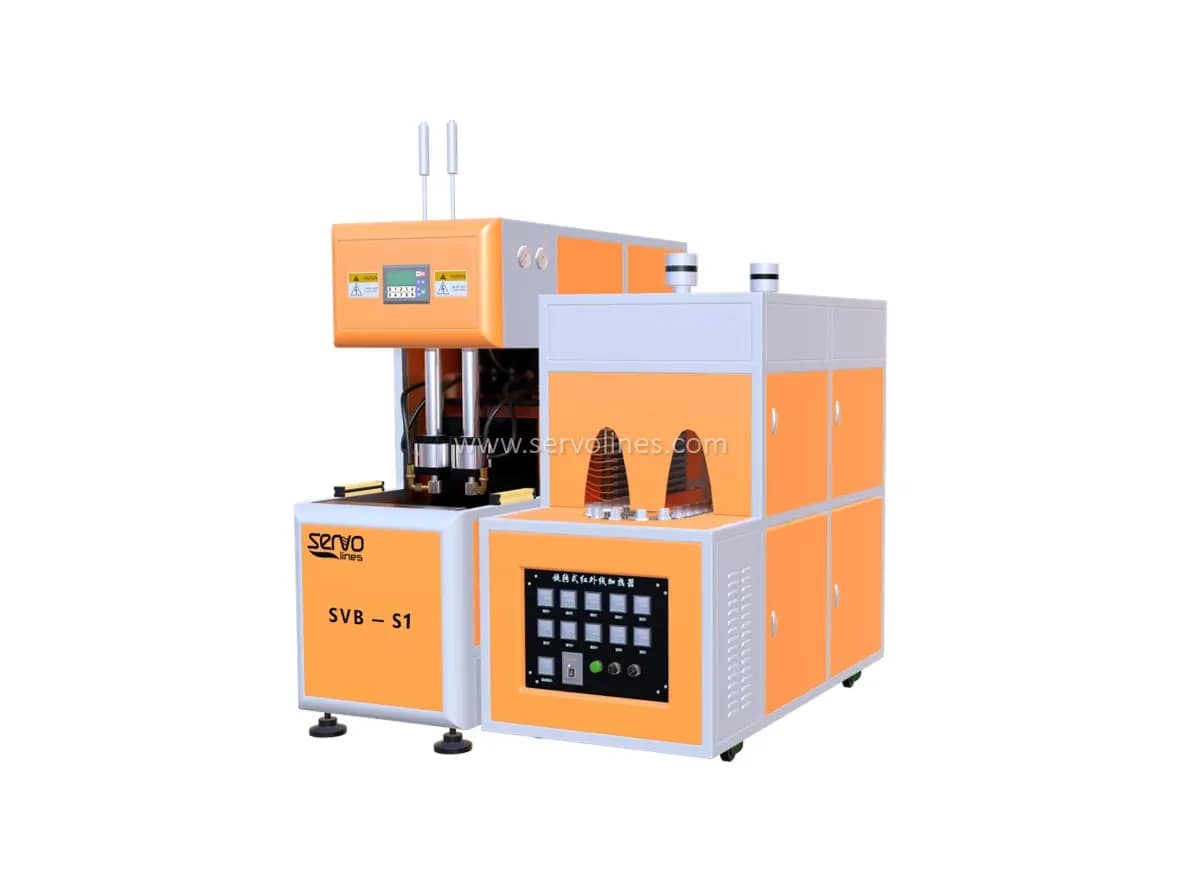

Semi-Automatic Two Cavities PET Bottle blowing line

with bottle auto-drop

SVB-S1

Stable Capacity: 900~1000BPH

1. Technical Process:
High-Pressure Air Compressor → High-Pressure Air Tank → High-Pressure Filters → High-Pressure Air Dryer
→ Semi-Automatic Blowing Machine.

2. Machine Specifications

Model:	SVB-S1
Stable capacity:	900~1000BPH
Bottle Auto-drop:	Included
Finished bottle body diameter:	30mm-130mm
Finished bottle body height:	50mm-350mm
Finished bottle body neck diameter:	15mm-120mm
Mold Cavity:	2 cavities
Mold thickness:	100~250mm
Max. stretching distance:	430*380mm
Power voltage:	3Phase 380V/ 50HZ
Installed power / actual power:	35W – 45W
High pressure air compressor:	1.2m3/min 3.0MPa
Air dryer:	2.0m3/min 3.0MPa
Cooling Water:	Optional
Machine dimensions:
Machine weight:

3. Configuration Details

Name	Brand	Origin
PLC		Taiwan DELTA
Screen		Taiwan DELTA
Circuit breaker		France Schneider
Start button		France Schneider
Two-position switch		France Schneider
Scram button		France Schneider
Power supply		Taiwan DELTA
Temperature controller		Taiwan DELTA
High pressure blowing valve		USA PARKER
High pressure exhaust valve		USA PARKER
Low pressure muffler		Japan SMC
High pressure muffler		USA ALWITCO
LP press-regulating valve		Germany FESTO
Low pressure lubricator		Germany FESTO
Clamping cylinder	YongCheng	China YongCheng
Stretching cylinder	YongCheng	China YongCheng
